Threeworlds Matrix Dragon Hub - pair - Black - 22 mm

Threeworlds Matrix Dragon Hub - pair - Black - 22 mm

Běžná cena 2.400,00 Kč
Běžná cena Výprodejová cena 2.400,00 Kč
Sleva Vyprodáno
Včetně daní.

V3 Dragon Hub—the heart of your custom Dragon Staff! This clever device clamps onto your staff and lets you easily swap out the number and type of spokes. Switch between six and eight spokes or go from fire to practice spokes anytime you want.

After three years of development and countless prototypes, the V3 Dragon Hub has been perfecting the art since 2013. Its thoughtful design and versatile options let you evolve your skills without limits. Using it is a dream come true!

Key Features:

  • Material: 7075 Precision Machined Anodized Aluminum
  • Weight: Just 99 grams per hub

What You Need to Know:

  • You’ll need two hubs for one staff—one for each end.
  • Compatible with our Dragon Fire Spokes, Spiral Dragon Claw, or any spoke with an 8mm rod.
  • Fits 22mm outer diameter pipe.

Extras:

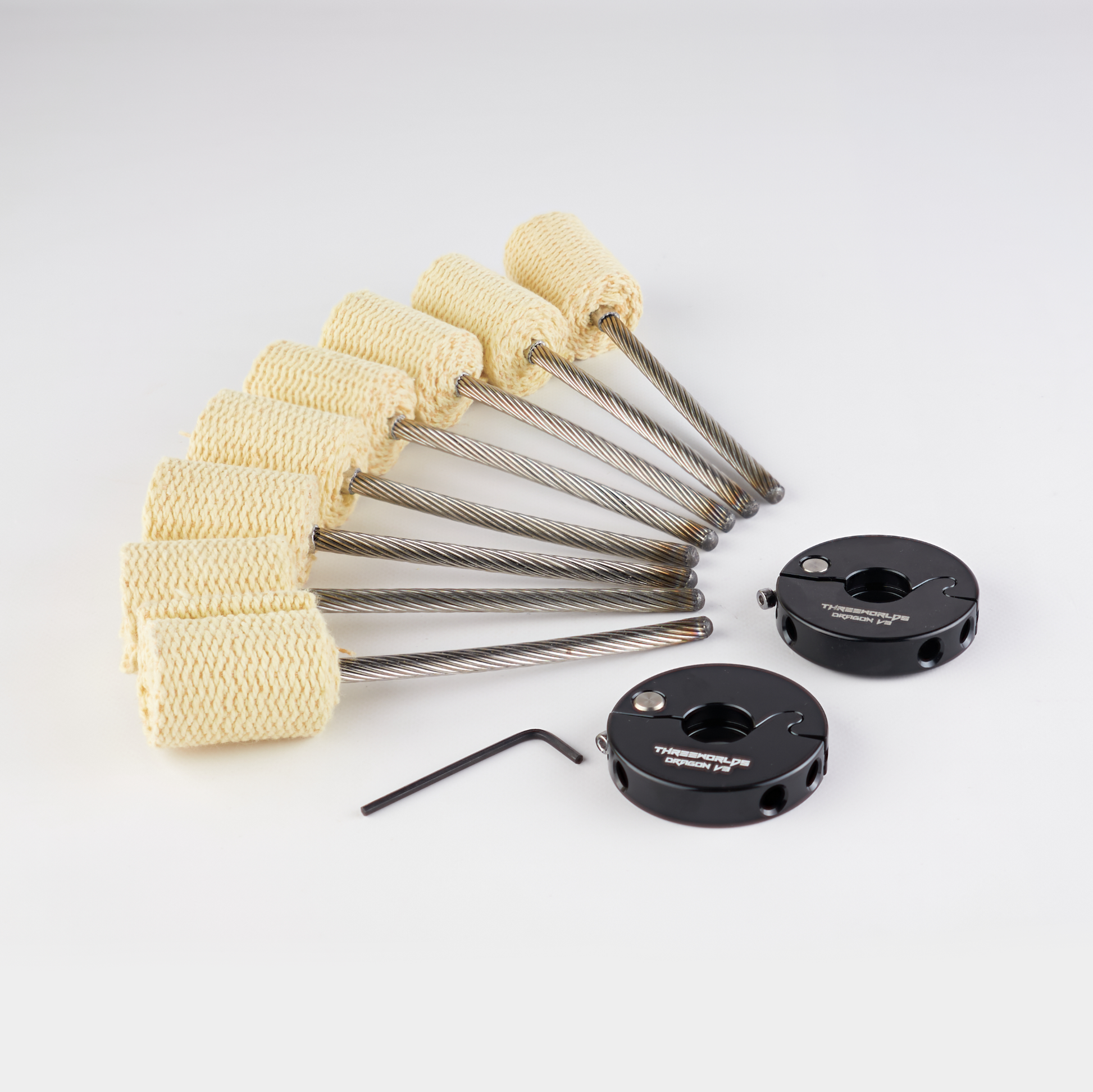

  • Price: Listed price is for one V3 Hub without the pole and wicks.


V3 Matrix Dragon Hub - Setup Instructions

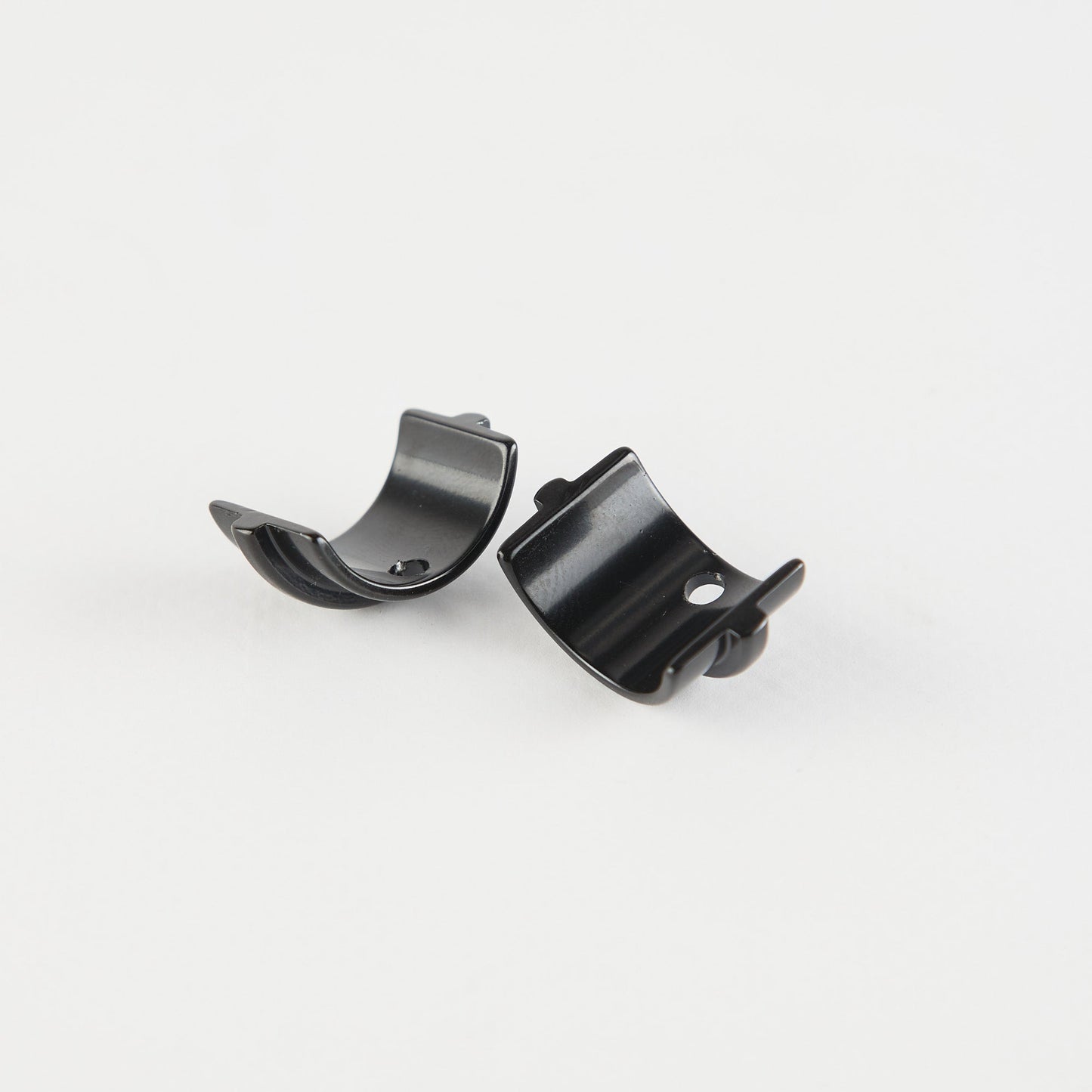

1. Push the spacers into the inner edge of both sides of the hub.

The hub is designed to fit a 22mm pole. Spacers can be used to downsize your hub to fit a 19mm pole, available separately or as ordered.



2. Insert the spokes.

This one hub can setup as a 3 or 4 wick dragon.
You’ll see 3 dots marked on the underside of the hub to show you a 3 spoke setup.

3. Tighten the grub screws to secure your spokes into position.

Ensure they are screwed in tightly and always test your dragon before every use.

4. Position the two halves of the V3 hub onto the end of your staff. Swivel the locking bolt to connect the two halves and tighten using your allen key.

Ensure the V3 Hub is clamped level with a metal end cap. Check that it is attached both to the staff and the end cap to ensure it will not fly off. Double check that your hubs are secure before each session of use, but do not over-tighten as this may crush your staff.



WARNING: If attaching to a Carbon Fibre Staff then the Carbon Fibre should have an aluminium end cap inserted in the each end to help reinforce it. Position the V3 Dragon Hub in line with the aluminium end  cap - see photo above for correct positioning. Failure to use end caps may cause damage to your staff, as the clamping action is very strong. This will not be covered by warranty.

CARE & MAINTENANCE

It's a good idea to remove and grease/oil the grub set screws and bolt from your hub to deter them from rusting. Do this more regularly if you live close to the ocean.
